Geometry

Question Analysis

The problem asks about the shape of each face of a cube in an isometric drawing. We need to understand the properties of isometric projections to answer this.



Key Concept Explanation

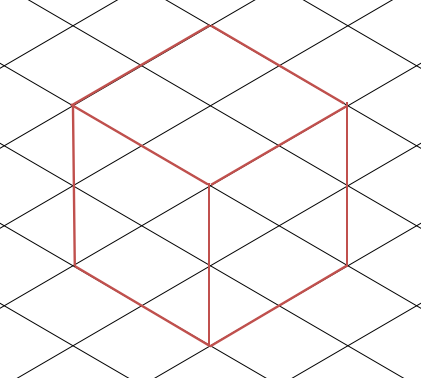

Isometric drawing: When representing a cube, which has square faces in 3D, the isometric projection distorts these squares.



Step - by - Step Solution

1. Recall the nature of a cube's faces in 3D, which are all squares.

2. In an isometric drawing, the square faces of the cube are transformed.

3. The sides of the square faces are no longer perpendicular to each other as in a true square, but instead form a shape with opposite sides equal and parallel, which is a rhombus.





Option Analysis

Circle: Incorrect. The faces of a cube are not circular in any view, including isometric.

Square: Incorrect. While the actual faces of a cube are squares in 3D, in an isometric dr...
