Geometry

Question Analysis

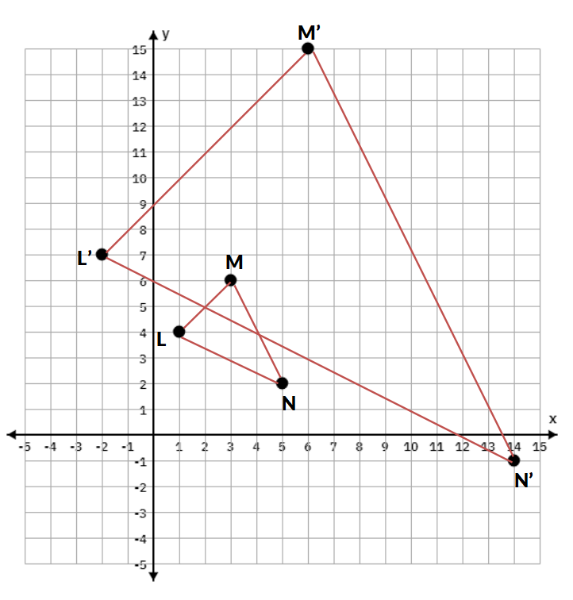

The main focus is to determine the center of dilation and calculate the scale factor.

Key Concept Explanation

Center of dilation: It is the fixed point around which a figure undergoes dilation. Lines drawn through corresponding points of the pre - image and the dilated image intersect at this point.

Scale factor: Represents the ratio of the length of a side in the dilated figure to the length of the corresponding side in the original figure. It indicates how much the figure is enlarged or reduced.

Step - by - Step Solution

1. Find the center of dilation:

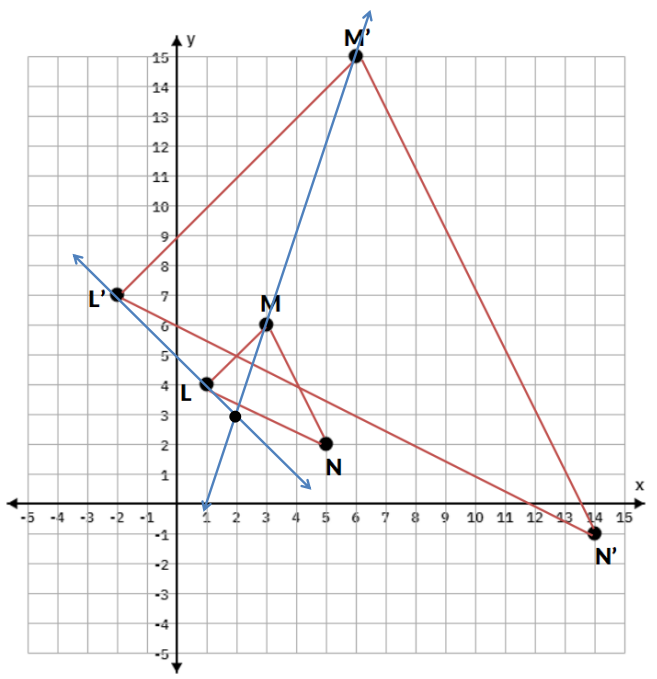

To find the center of the dilation, you can draw a line through L and  and another line through M and  and see where the lines intersect. This intersection point is the center of the dilation, because in a dilation, all such lines connecting corresponding points will pass through this unique fixed point around which the figure is expanded or contracted.

By observing the graph, we find that the center of dilation is .

2. Calculate the scale factor:

Use the distance formula .

For side with and :

.

 For side
