Geometry

Question Analysis

This question involves determining the relationship between two angles formed by a transversal intersecting two lines. The main focus is on understanding the different types of angle pairs and their properties.

Key Concept Explanation

Alternate interior angles are located inside the two intersected lines and on opposite sides of a transversal.

Alternate exterior angles are the angles that located outside the two intersected lines and on opposite sides of the transversal.

Corresponding angles are in the same relative position with respect to a transversal and the intersected lines.

Same side interior angles are the angles that located inside the two intersected lines and on the same side of the transversal.

Step-by-Step Solution

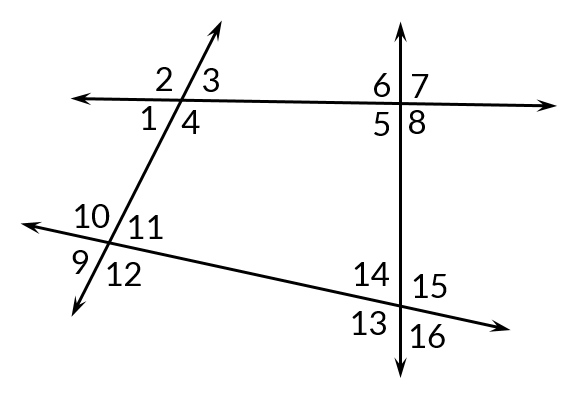

Check the position of ∠1 and ∠7 with respect to the transversal and the intersected lines:

Consider the two sets of intersecting lines. The line that intersects the other two l...
