Algebra-1

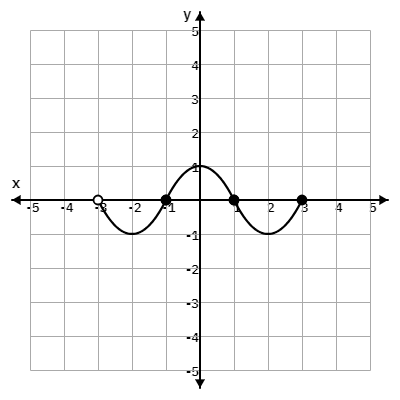

Let's analyze the graph and determine the correct DOMAIN (D) and RANGE (R) based on the graph:

First Segment (Downward then Upward Curve):

Left endpoint: Open circle at (−3,0)

Right endpoint: Closed circle at (−1,0)

Lowest point: (−2,−1)

This segment starts decreasing from (−3,0) to (−2,−1) and then increases back to (−1,0).

Second Segment (Upward then Downward Curve):

Left endpoint: Closed circle at (−1,0)

Right endpoint: Closed circle at (1,0)

Highest point: (0,1)

This segment increases from (−1,0) to (0,1) and then decreases back to (1,0).

Third Segment (Downward then Upward Curve):

Left endpoint: Closed circle at (1,0)

Right endpoint: Closed circle at (3,0)

Lowest point: (2,−1)

This segment decreases from (1,0) to (2,−1) and then increases back to 3,0).

...
